Industrial platform scale

Model Number: [ 1530 ]

Manufactured by: turier

Product Description:

1530,Heavy Duty Platform Scale manufactured in the UK by Turier's

EC Approved , verification fees if trade approval required

Heavy duty platforms constructed from mild steel.
Fitted with four IP67 C3(R60) nickel load cells.
Suitable for Freestanding, Ramped or Dormant applications.
Standard finish – hammer spray with choice of durbar pattern or smooth goods plate.

PLATFORM SIZES but also can be custom made to specific requirements

800 x 800mm 1000 x 1000mm 1200 x 1000mm
1250 x 1250mm 1500 x 1250mm 1800 x 1200mm
1500 x 1500mm 2000 x 1500mm 2500 x 1500mm
2000 x 2000mm 3000 x 1500mm 2500 x 2000mm
3000 x 2000mm 2500 x 2500mm 3000 x 2500mm
3000 x 3000mm

Capacities : up to 3000kg ~ up to 6000kg ~ up to 10,000kg

Ramp(s) available for all sizes and up to a maximum capacity of 3000kg, except for the following sizes: 3000x2000mm,2500x2500mm,3000x2500mm&3000x3000mm.
Pit Mounted / Dormant platforms , see section for Dormant platforms.

Verification can be for 3000 / 4000 / 6000 or multi interval
2 x3000 divisions with appropriate load cells and indicator, please contact us to discuss.

Choice of indicators from our extensive range , see section on indicators within this web site , please telephone us to discuss your requirements and receive our best advice and BEST PRICE.

Stainless steel IP68 C3(R60) cells
Hot dip galvanize
Zinc spray & 2 pack acrylic
500V flash tested cells
ATEX certified cells
Inbuilt fork lift guides
Protective 4 sided kerb, painted yellow
Dormant :Mild steel pit liner instead of a pit edge angle frame see page Heat barrier, polypropylene chemical resistant cover,
Trolley, roller track, ball table – POA
Special paint finishes, any RAL colour - POA
Ramps for capacities higher than 3000kg - POA
Non standard sizes and capacities from 12000kg up to 20000kg – POA

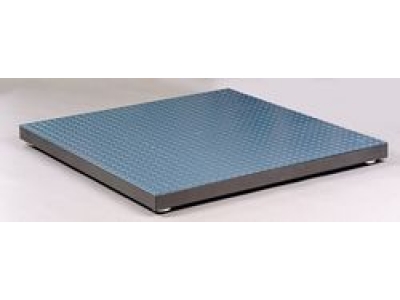

Product Image
