ST-B

Model Number: [ ST-B ]

Manufactured by: Bizerba


Product Description:

Stainless steel weighing indicator for use in safe area with built in safety barrier for connection to load cells in Zones 1 & 21 with no signal loss. Sealing protection to IP68, bench or wall mounting.
Backlit graphic LCD with 18mm digit weight display and a 21 digit 12mm display for prompts & functions.
Numeric keypad with alpha entry facility and 7 ‘hot’ keys for customer configuration.
External barriers not required.110-230VAC power supply.
Counting software included. 30000 divs max.
Add on options – Dosing software, interface modules, 2nd A/D
Approved up to 6000 divs or 2 x 3000 divs multi interval
OPTIONS
ST-B indicator with 1 A/D pcb, 110-230VAC mains
2nd A/D pcb
Dosing control software & 8 + 8 I/O’s
RS232 I/O card
(only 2 I/O cards can be fitted) RS422 I/O card
RS485 I/O card
4-20mA analog output
CBM910 tally roll printer (needs RS232 I/O card in indicator)
3m cable with connectors needed for all I/O’s and comms
extra cable per metre
Label printer

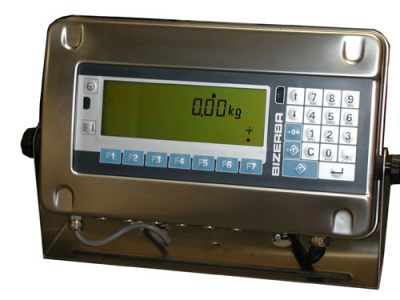

Product Image
