UHWH , DHWH & LHWH

Model Number: [ UHWH , DHWH ]

Manufactured by: Excell


Product Description:

HWH Series High Resolution Weighing Bench / Floor Scale

UHWH ( SHORT COLUMN )
30kg x 1g
platform size 380 x 280mm

DHWH
60 kg x 2g ~ 150 kg x 5g
Platform size 420 x 520mm

DHWH
150 kg x 5g
Platform size 420 x 520mm

LHWH
150 kg x 5g ~ 300 kg x 10g
Platform size 460 x 600mm

LHWH
300 kg x 10g
Platform size 460 x 600mm

Power Source : AC 230V + DC 6V/4.5AH rechargeable battery
Display: LCD, 6 Digits, 25 mm (Height), EL backlight
Column mounted indicator , can be remote.
* Up to 1/30,000 display resolution (Internal resolution 1/600,000)
* Auto calibration
* Kilogram (kg) and pound (lb) weighing modes
* Large LCD display with EL backlight
* Full range tare; Auto zero tracking
* Preset weight or quantity; Weight accumulation
* Gross/Net indication; Hold function; Check mode Lo/Hi/OK
* Low power and charging status indication

OPTIONS.
RS-232 or Serial printer output
Relay output (3 sets relay output)

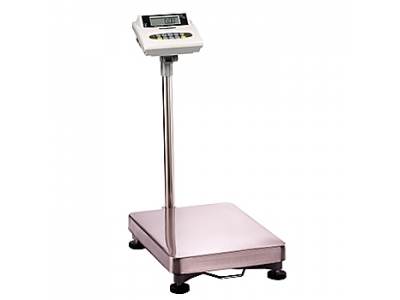

Product Image
