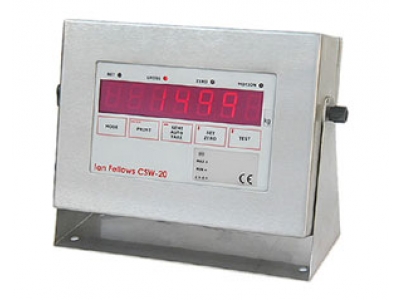

CSW-20 mains sealed

Model Number: [ CSW-20 ]

Manufactured by: Ian Fellows


Product Description:

Features
High Quality - Low Cost.
7 Digit, bright, easy to read, large LED display.
Stainless steel enclosure with swivel bracket for wall/desk mount.
Connections via 5mm press clamps.
Trade Approved for any R60 loadcells.
High resolution weighing performance.
Multi point linearity adjustment.
Accommodates extremes of dead load and signal.
Superb digital weight filtering.
x10 resolution test mode.
Configuration via front panel or serial communication.
Firmware upgrades via serial port.
Two serial ports, printer port can be used for remote display.
Memory tares, semi automatic tare and set zero functions.
3 outputs, 2 inputs as standard.
Real time clock as standard.
Versatile print formatting.
PLU's recalling A/N text, setpoints, part weights and totals.
Multi-drop communications.
Sophisticated fill control with fast cut off and predictive software.
Variety of setpoint operating modes.
Many advanced software features.


Options
15 bit Analogue output 0-10V or 4-20mA.
Flash Electronic Tally Record (Alibi Device).
Integrated RF modem.
ModBus Communications.
24V DC powered version.
Additional 2 inputs, 2 outputs.
