VT300 mains 85-265VAC

Model Number: [ VT300 ]

Manufactured by: VISHAY

Product Description:

The VT300 is a compact, powerful alphanumeric terminal, designed for numerous weighing applications, varying from a simple fixed tare weighing operation to powerful truck in/out management systems.
User friendly configuration and operation, hardware and software reliability, and legal-for-trade accuracy in an attractive enclosure ensure high performance to meet the most demanding needs.

• Weighbridges, platform scales or dual scale applications requiring weight indication and professional documentation
• Piece counting (single or dual scale configurations)
• Computer based weighing systems

• Analogue output (current or voltage)
• Second analogue input for second scale connection

• Approved for 10,000divisions
• Up to 70 measurements per second
• Alibi-memory for 10,000 records
• Excitation for up to 10 strain gauge load cells, 350 Ohm each (or more)
• Large, 16 character LCD display (14.5mm) with status annunciators
• 27 keys membrane keyboard with tactile feedback (alphanumeric)
• Single or dual interval / range
• Analogue and digital filtering
• Standard RS232 for PC or printer connection and RS232/RS485 interface with networking capability
• Real time clock
• 1 digital input (programmable as tilt input or to tare scale remotely or for other purposes)
• 2 digital outputs (programmable as weight set points or as other control outputs)
• Stainless steel enclosure (IP65) or powder coated aluminium (IP40)

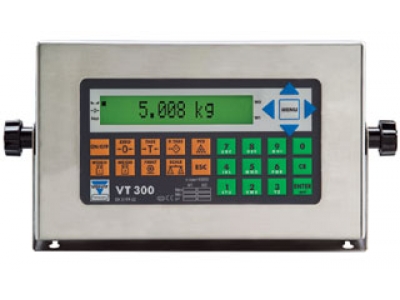

Product Image
